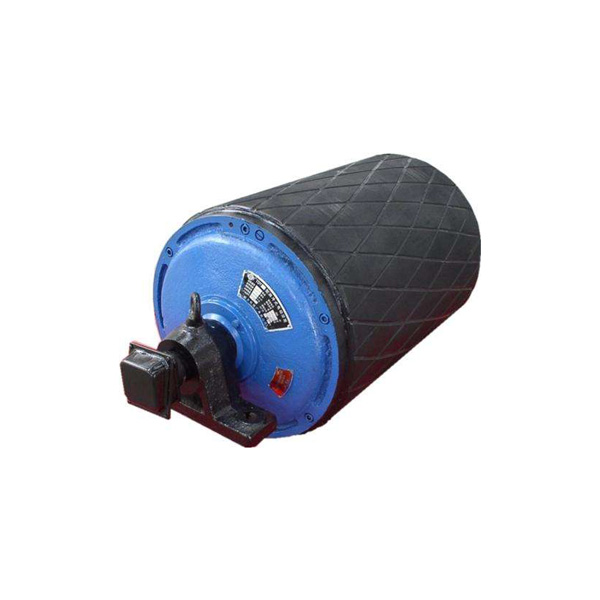

Permanent Magnet Roller

Name: Permanent Magnet Roller Country: China Usage: Applicable to the purification and concentration of Ores, chemicals and granular products C lassification : Separator Accessories Parameters: Introduction： Permanent Magnet Roller is a stationary permanent magnet, comprised of standard Ferrite...

Send Inquiry

Name: Permanent Magnet Roller
Country: China
Usage: Applicable to the purification and concentration of Ores, chemicals and granular products
Classification: Separator Accessories

Parameters:

Magnetic roll model RCY-GB cm	D	A	L	L1	L2	K	M	N	Q	P	H	h	h1	d	b	d3	Roll surface magnetic induction (mt)	Injection hole size	bearing designation	Permissible torque	Glossy weight	Plastic surface weight
RCY-G50	500	850	600	1114	495	140	70	--	350	410	120	33	74.5	70	20	M20	Special T=300-400 General P150-250	2-MB*1	1316	2.7	260	380
RCY-G65 Y/Z		1000	750	1264	570															3.5	550	580
	630																			14.1	780	800
	500			1364	590	170	80	--	380	460	135		95	90	25	M24		4-MB*1	3520	6.3	580	580
	630																			7.3	780	600
	500	1050		1419	615	210	110	--	440	530	155		118	110	28						580	600
	630																				800	820
RCY-G80 Y/Z	500	1300	950	1624	740	170	80	--	380	460	135	46	95	90	25				3520	4.0	750	780
	630																			6.0	1060	1090
	800																			7.0		1480
	630			1669		210	110	--	440	530	155		116	110	28	M30			3524	12	1060	1090
	800																					1480
	630			1724	750	250	120	--	480	570	170	63	137	130	32					20	1060	1050
				2000	1500															2*16		1090
	800			1724	750
				2000	1500
		1400		1839	800		200	105	520	640	200	60	158	150	36			4-MID*1	3532	32		1650
				2100	1600															2*32		1700
RCY-G100 Y/Z	630	1500	1150	1824	840	170	80	--	380	460	135	46	95	90	25				3520	6.0		1250
				1869		210	110		440	530	155		116	110	28	M24			3524	12		1285
	800																					1865
	1000																					2795
	630			1924	850	250	120	--	480	570	170	63	137	130	32	M30		4-MB*1				1290
				300	1700																	1300
	800			1924	850														3528	20		2070
				2300	1700															2*16		2130
	1000			1924	850															20		3050
				2300	1700															2*16		3090
	800	1600		2039	900		200	105	520	200	640	60	158	150	36			4-M10*1		27		2300
				2300	1800															2*22		2330
	1000			2039	900															27		3275
				2300	1800	300	220	120	570	700	220	70	179	170	40					2*22		3310
	800			2110	910															40		2610
				2420	1820															2*35		2680
	1000			2110	910
				2420	1820
	800	1650		2278	975	350	240	140	640	780	240	75	200	190	45							2980
				2650	1950																	3025
	1000			2278	975														3540	52		4250
				2650	1950															2*42		4350

Introduction：
Permanent Magnet Roller is a stationary permanent magnet, comprised of standard Ferrite and Rare Earth NdFeB Magnets enclosed in a non-magnetic stainless-steel drum shell.

Application:
Permanent Magnet Roller is widely used as head pulleys in belt conveyors for continuous automatic removal of damaging tramp iron from a variety of materials. Permanent dry permanent magnet separator roller work with conveyor systems, it is widely used in purification and concentration of Ores, chemicals and granular products.

Work principle:
When the forrous metal material passed over the magnetic pulley, ferrous metal is attracted to the magnetic pulley and remain on the belt until the belt moves away from the pulley, non ferrous material is unaffected and falls into the cleaned material flow.

Features:
1. Easy to install and convenient to use.
2. Excellent magnetic field intensity.
3. No energy consumption itself.
4. High efficiency and stable performance.

Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:
As a professional manufacturer and designer of Permanent Magnet Roller for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
