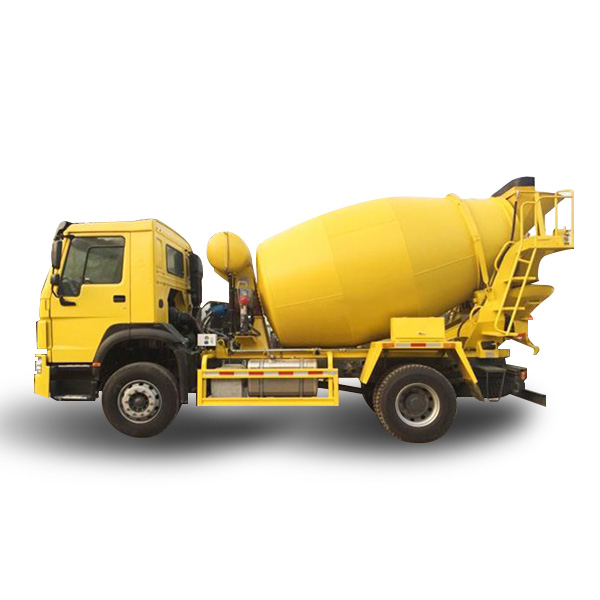

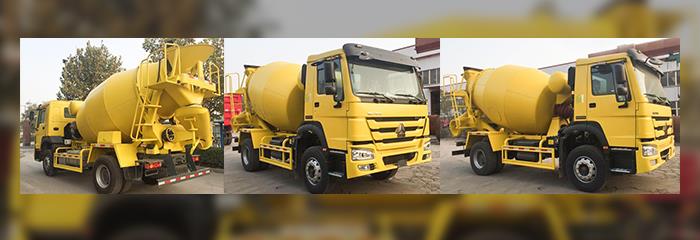

Howo 4x2 Cement Mixer Truck

Howo 4x2 Cement Mixer Trucks Model No. : ZZ1167N3647C Horsepower: 266/290 HP Transmission: 10F & 2R Tank Body: 5 CBM Detailed Specification: Key Specifications/Special Features: 1. We are mainly to provide the SINOTRUK series heavy trucks brand, Sinotruck Howo 8x4 Dump Truck, Sinotruk Howo...

Send Inquiry

Howo 4x2 Cement Mixer Trucks

Model No. : ZZ1167N3647C

Horsepower: 266/290 HP

Transmission: 10F & 2R

Tank Body: 5 CBM

Detailed Specification:

Sinotruk Howo 4x2 Mixer Truck - 5 CBM
Chassis Model	ZZ1167N3647C
Production Year	2016. New truck.
Cabin	HW70 cab(Howo 4x2 Cement Mixer Trucks), with no sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air
Cabin	conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.
Engine	Make: SINOTRUK
	Diesel 4-stroke direct injection diesel engine(Howo 4x2 Cement Mixer Trucks)
	Emission Standard: Euro 2
	6-cylinder in-line with water cooling, turbo-charging and intercooling
	Displacement: 9.726 L
Transmission	HW13710CL,10F & 2R, with PTO
Transmission	Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle	HF7, 1x7000 KGS
Front Axle	Steering with double T-cross section beam
Rear Axle	MCY13, 1x13000 KGS
	Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles(Howo 4x2 Cement Mixer Trucks).
	Ratio: 5.73
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members (Howo 4x2 Cement Mixer Trucks)
	Front suspension: 10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer (Howo 4x2 Cement Mixer Trucks)
	Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake
	Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels (Howo 4x2 Cement Mixer Trucks)
	Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded
	Starter: 24 V, 5.4 Kw
	Alternator: 3-phase, 28 V, 1500 W
	Batteries: 2 x 12 V, 165 Ah
	Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	295/80R22.5, tubeless tires.
Fuel Tank	300 L
Mixer Body	Tank Body: 5 Cubic Meters
	Mixer Pump: Eton (USA Brand)
	Motor: Eton (USA Brand)
	Speed Reducer: Bonfiglioli (Italy Brand)
Overall Dimension	800025503700 mm

Key Specifications/Special Features:

1. We are mainly to provide the SINOTRUK series heavy trucks brand, Sinotruck Howo 8x4 Dump Truck, Sinotruk Howo A7 6x4 Dump Truck, Howo 6x4 Dump truck, Howo Mining King Dump Truck, Howo 4x2 Cement Mixer Trucks, Howo 6x4 Cement Mixer Trucks, Howo A7 6x4 Cement Mixer Trucks, Howo 8x4 Cement Mixer Trucks and so on.

2.We have enough experience to deal with some trucks troubles, and provide the high quality low price trucks parts.

3. Now we are Establish a good co-op relationship in Africa, mid-east, Asia and so on.

4. Mainly for our customer is: local dealer, whole agent, and trucks company

Our company is professional in buses ,heavy duty truck light truck,construction machinery and truck parts many years.

Hot Tags: howo 4x2 cement mixer truck, China, manufacturers, suppliers, factory, price, customized, for sale
