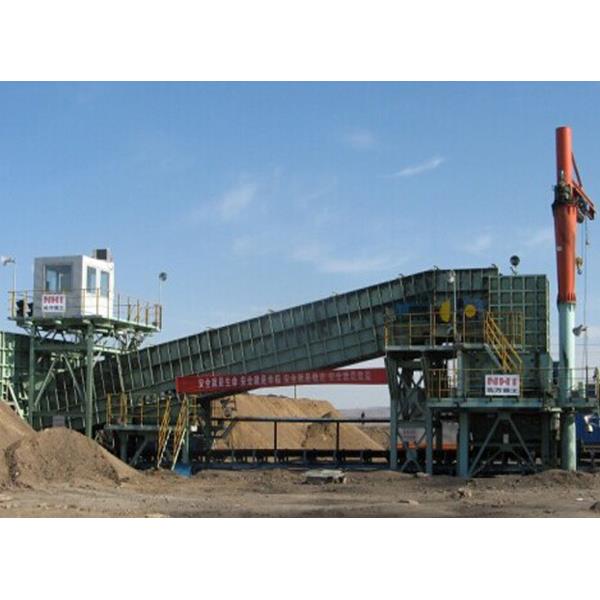

Metal Mineral Dressing Production Line

• Product Details

Brief Introduction of Metal Ore dressing flow chart

Metal ore dressing production line usually involves a combination of crushing and milling as well as magnetic separation. This is achieved by passing the finely crushed ore over ball mills and magnetic separators.

Metal ore crushing

Metal ore crushing and milling plays a very important role in the whole dressing process, because the finer Metal ore is, the easier the separation is, and so the less the production cost is. A good choice of Metal ore crushing equipment is necessary.

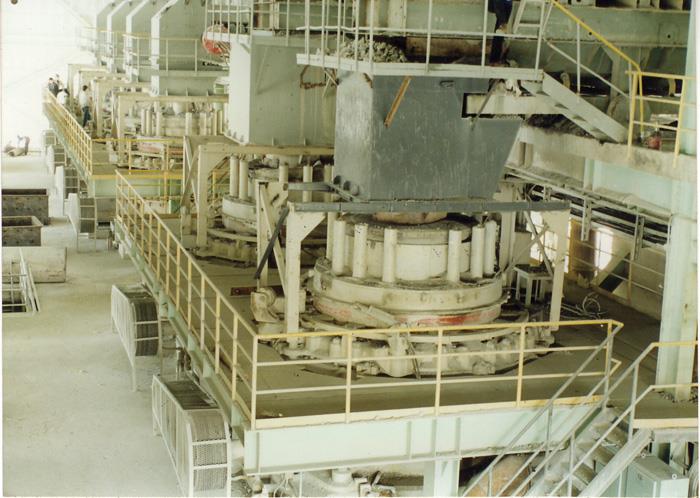

The common metal ore crushers are jaw crusher (for primary crushing), cone crusher or fine jaw crusher (for secondary crushing). Materials in large lumps are reduced by crushers into small particles and then separated by vibrating screen. Large ones return to crushing process, while small ones pass to milling step.

1st ball mill grinding

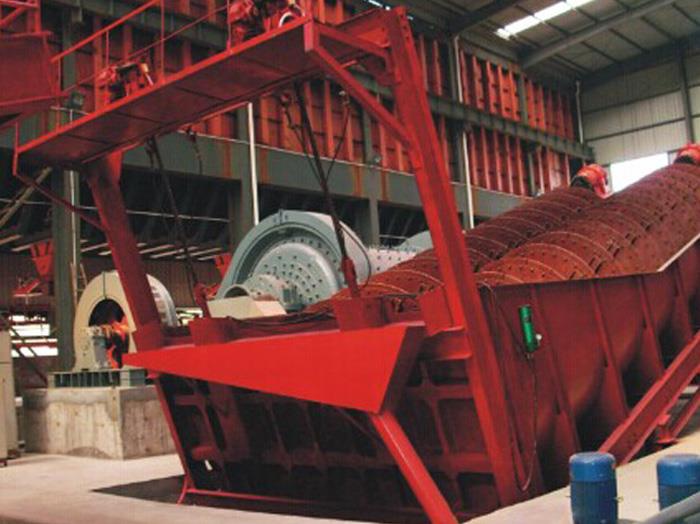

Crushed metal ore is moved by belt conveyor to ball mill for grinding, after which, 36% of metal ore is grinded into 200mesh in size. Double spiral classifier and cylinder screen are used to separate large particles from grinded product.

Wet ball mill is usually used in metal ore processing production line. The selection of ball mill is based on ore size, required output, and required ore grade etc.

Rough magnetic separation and 2nd ball mill grinding

Low intensity magnetic separator is used to realize rough separation. Very low Fe content metal ore (-17%) is discharged as tailings, while high Fe content metal ore (+52%) is passed to thickener then to double spiral classifier. Large ore particles pass to secondary ball mill to be grinded into products less than 200 mesh in size which will return to secondary thickener. The others pass to cylinder screen. metal ore with 53% of Fe pass to cleaner separation.

Cleaner magnetic separation

High intensity magnetic separator plays the role of cleaner separation. Product of 62.07% Fe content is regarded as metal ore concentrate, and the rest product is moved to thickener and then to cylinder screen. Low Fe content material is discharged as slag.

Scavenger magnetic separation

Metal ore of high Fe content (+39.11%) is moved to scavenger magnetic separator to maximize production yield.

Helpful hints: since iron ore information should be accurate for its dressing flow, our engineers need to know well about your raw materials before designing the iron ore dressing production line.

EO inherits the pioneering and innovative Practical work style, and takes the strategy of high integrated technology key equipment and turn-key service, to build international mining company in mineral manufacturing fields with global perspective. Having the service of mining engineering design, technical equipment research and development, equipment manufacturing formed into the whole system.

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.

In addition, we provide one-year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

•
