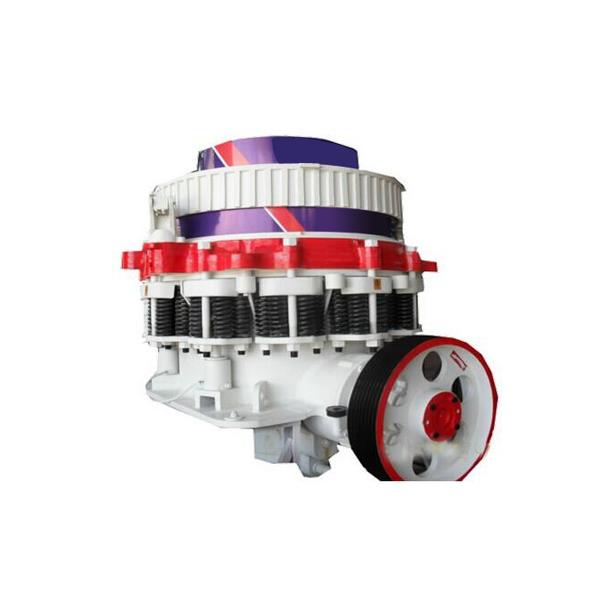

High performance rotary crusher mainly used in medium and large scale metallurgy, construction materials, chemical industry and water and power department.It is one of the main equipment used for coarse crushing of ores and rocks. It has characteristics such an higher crushing rate and...
High performance rotary crusher mainly used in medium and large scale metallurgy, construction materials, chemical industry and water and power department.It is one of the main equipment used for coarse crushing of ores and rocks. It has characteristics such an higher crushing rate and production capacity, uniform particle size, reliable performance and low energy consumption.Therefore, it is very popular with customers at home and abroad.
Performance Parameter Table of high performance rotary crusher
Type | PP | PP | PP | PP | |||||||||
0911 | 0919 | 0325 | 1213 | 1219 | 1225 | 1232 | 1619 | 1625 | 2116 | 2125 | 2132 | ||
Drawing No. |
| KG1420 | KG1413 | 2010000 | KG141 |
| |||||||
Cone diameter(mm) | 914(36") |
| 1219(48") | 1676(66") | 2134(84") | ||||||||
Throat dimension(mm) | 11 | 19 | 25 | 13 | 19 | 25 | 32 | 19 | 25 | 16 | 25 | 32 | |
Passage | Range | 58.5-67.5 | 103.5-117 | 171-189 | 238.5-270 | ||||||||
With <9mm griddle | 54 | 95 | 145 | 227 | |||||||||
With <6mm griddle | 45 | 73 | 108 | 162 | |||||||||
Main | Model | JS115-6 | Y315M2-4 | Y355-6 | Y450-8 | ||||||||
Power(kw) | 75 | 160 | 220 | 315 | |||||||||
Speed (r/min ) | 980 | 1485 | 980 | 740 | |||||||||
Voltage(V) | 380 | 6000 | |||||||||||
Overall | Length(mm) | 2.233 | 2.733 | 3.912 | 4.613 | ||||||||
Width(mm) | 1.746 | 2.254 | 2.87 | 3.772 | |||||||||
Height(mm) | 2.67 | 3.524 | 4.045 | 3.778 | |||||||||
Weight(t) | 14.8 | 35.1 | 46.5 | 87.66 | |||||||||
Remarks | * Introduced technology (1)Overall size excluds motor length | ||||||||||||
Working principle of high performance rotary crusher： When the spring cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.
Features of the high performance rotary crusher:
1.The lubrication unit is interlock with the main motor for additional safety as a standard equipment.
2.Reliable quality certified by CE and reaches to European standard.
3.Newest improved design with our own technical patent.
4.Hydraulic adjusting system to control the output sizes
5.The spring safety system of crusher acts as an overloading protection system that allows metals to pass through the crushing chamber so as not to damage the Cone Crusher.
Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
