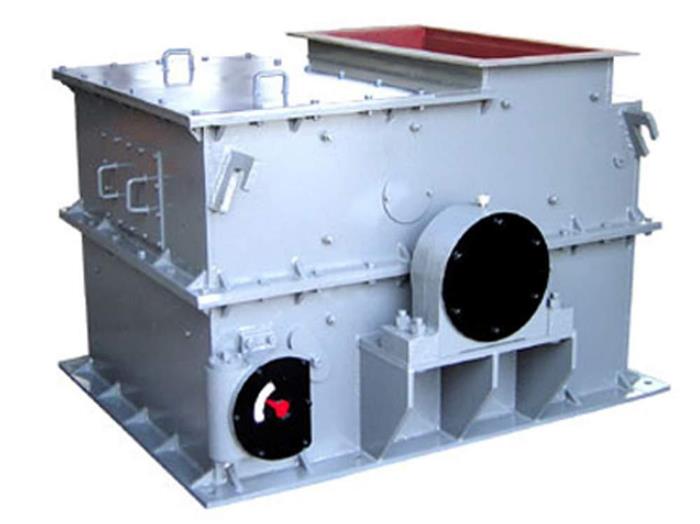

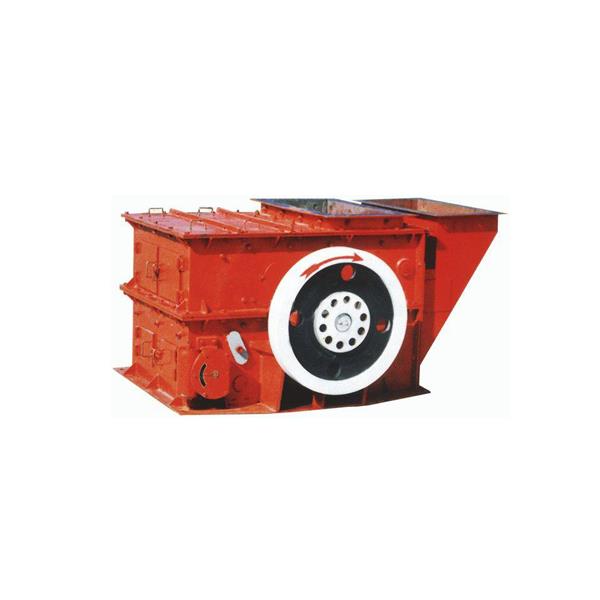

PCH Ring Hammer Crusher

• Product Details

The PCH ring hammer crusher is used for crushing various fragile materials which are moderately hard and have weak corrosivity, such as gangue, coal, salt, chalk, gypsum, tile, limestone, coke, red sandstone, slag, shale, etc. Both dry crushing and wet crushing are available. The ring hammer crusher can also be applied for crushing fiber structure, scrap wood which has strong elasticity and toughness, waste paper, broken asbestos cement, etc. Compressive strength of the material does not exceed 100Mpa, the surface water of not more than 15 percentage.

The ring hammer coal crusher is widely used for coal crushing for chemical industry, coal, thermal power generation etc. it is efficient, energy conservation, stable working, low noise and low blast volume. The main part consists of frame, rotor, grid plate, synchronization regulation device, top cover hydraulic starting device. The main body will started by elasticity steel plate coupler and motor.

Base on introduction of the crusher from the crusher company of Pennsylvania American, our company have developed totally localization light and heavy two series and 10 types crusher which combine with our company experience of design, manufacturing of hammer and impact crusher.

PCH Ring Hammer Mill Crusher, Small Rock Crusher Price working principle

The main working part of this is the rotor with a hammer(or hammer head), which consists of spindle, hammer and other parts. The motor drives the rotor spinning with high-speed in the cavity, and the materials needed to crush are conveyed into the cavity from the inlet, and being crushed by high-speed movement of the hammer blowing and impact, squeezing, and grinding among the materials. There is a screen plate at the bottom of the rotor, which can screen the crushed materials: materials size smaller than the sieve can come out through the sieve, while the materials with bigger size than than the sieve will still be shot and grinded bu the hammer, and finally be discharged out from the plate.

Ring Hammer Crusher Features :

1. The ring hammer crusher is designed with a simple structure, large crushing ratio and high production efficiency.
2. It is highly efficient and energy saving, and causes low noise and little dust.
3. The space between grid sections can be adjusted to change discharging granularity in line with clients' needs.
4. The alloy hammerhead has excellent corrosion resistance and its service life is 1.5~2 times that of normal high manganese steel.

5.The screen plate can be changed quickly. It is simply to adjust and maintain conveniently.

6.The central hammer crusher is designed with a simple structure, large crushing ratio and high production efficiency.

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.

In addition, we provide one-year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

•
