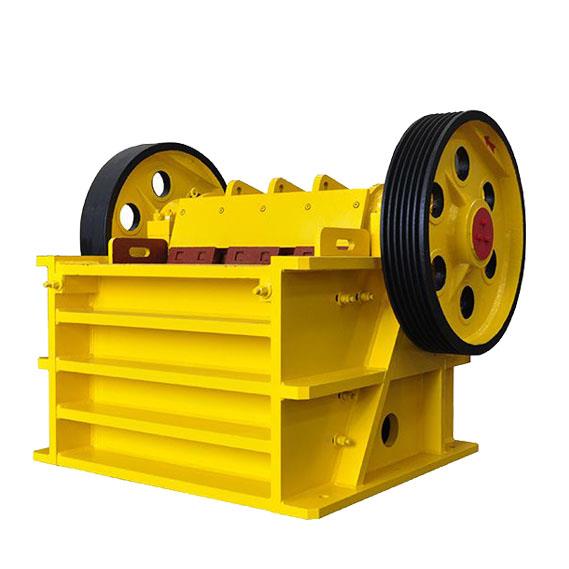

Mini Jaw Crusher

Product name：Mini Jaw Crusher Brand：EO Country of origin: China

Send Inquiry

As One of the most popular stone-crushing equipments in the world, Mini Jaw Crusher is ideally suitable for primary and secondary crushing. This series jaw crusher has a feature of large crushing ratio, uniform product granularity, simple construction, reliable operation, easy maintenance, low operating cost. This crusher is widely used in mining, smelting, building materials, roads, railways, water conservancy, chemical industry and many other departments, meanwhile all kinds of materials.

Technical Parameters.gif

Type	Size	Feed opening	Max feed	Setting adjustment range(mm)	Capacity	Motor Type	Power	Voltage	Machinery Weight(t)	Overall dimension(m)
		(mm)	lump size		(m3/h)		(KW)	(V)
			(mm)
STPEF0204	250×400	250×400	210	20-60	5-20	Y180L-5	15	380	2.325	103×1.02×1.14
STPEF-X0207	250×750	250×750	210	20-60	20	Y225M-6	30	380	6.3	1.48×1.91×1.5
STPEF-X0210	250×1000	250×1000	210	20-60	10-23	Y2805-6	37	380	7.72	1.48×2.34×1.54
STPEF-X0212	250×1200	250×1200	210	15-50	13-38	Y280S-8	37	380	7.5	1.6×2.2×1.3
STPEF0406	400×600	400×600	340	60±30	18	Y225M-6	30	380	6.56	1.56×1.74×1.59
STPEF0507	500×750	500×750	400	75±25	40.5	YR280M-6	50	380	10.57	3.50×1.94×2.21
STPEF0609	600×900	600×900	500	100±25	60	JR75-8	75	380	16.9	2.57×3.72×2.37
STPEF0710	750×1060	750×1060	630	110±30	110	YR280M-6	90	380	24.01	3.1×2.6×2.95
STPEF0912	900×1200	900×1200	750	130±35	180	JR126-8	110	380	44.13	5.00×4.47×3.28
STPEF1113	1066×1219	1066×1219	950	100-200	240	YR355M2-8	160	380	51.35	3.6×2.99×3.32
STPEF1113	(42"×48")	1066×1219	950	100-200	240	YR355M2-8	160	380	51.35	3.6×2.99×3.32

Catalogue	mm Feeder opening		mm Max Feeder	mm Discharge size		m3/h Capacity	(Motor)
Type	Width	Length	opening	Normial size	Adjusting range	m3/h Capacity	Model	kw Power	r/min Speed	v Voltage
STPEJ 0609	600	90	500	100	±25	60	YR315M-8	75	740	380
STPEJ 0912	900	1200	750	130	±35	180	JR126-8	110	730	380
STPEJ 1215	1200	1500	1000	155	±40	310	YR450-12	160	492	3000/6000
STPEJ 1521	1500	2100	1300	180	±45	550	YR500-12	250	490	3000/6000

More Details:

As a professional manufacturer and designer of Mini Jaw Crusher, we can offer various kinds of products with advanced mechanical equipment and experienced technical workers that we can provide this prodct on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.

Hot Tags: mini jaw crusher, China, manufacturers, suppliers, factory, price, customized, for sale
