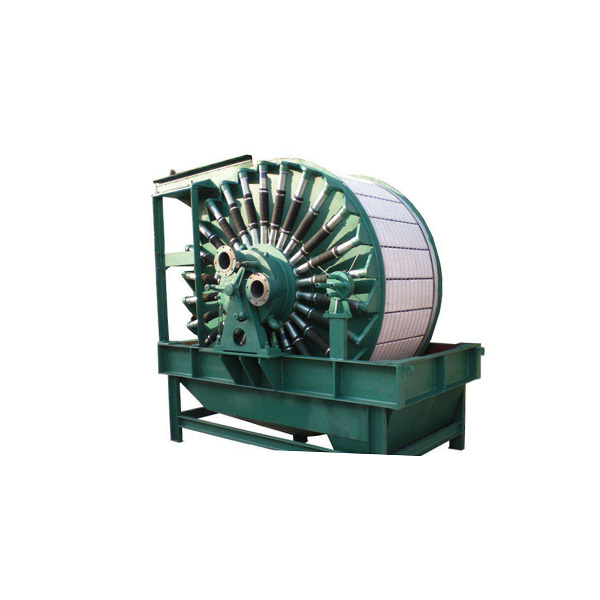

Vacuum Permanent Magnet Filter

Name: Vacuum Permanent Magnet Filter Country: China Usage: Applicable to the dehydration of the relatively coarse-particles magnetic materials C lassification : Permanent Magnet Separator Parameters: Introduction： Vacuum Permanent Magnet Filter is vacuum permanent magnet filter which is feeding...

Send Inquiry

Name: Vacuum Permanent Magnet Filter
Country: China
Usage: Applicable to the dehydration of the relatively coarse-particles magnetic materials
Classification: Permanent Magnet Separator

Parameters:

Model		KGYW-3	GYW-5	GYW-8	GYW-12	GYW-20
Filter area(㎡)		3	5	8	12	20
Dimension(mm)	Diameter	1600		2000		2550
	Depth	700	900	1400	2000	2650
Rotating Speed(r/min)		0.5-2
Magnetic induction of cylinder surface(mt)		80 87
Concentration of ore(%)		≥60
Concentrate moisture(%)		8-11 8-10
Processing capacity(Feed particle size is 0.15-0.80)(t/h)		6-9	14-18	22-43	33-65	54-108
Motor power(kw)		1.5	1.5	1.5	2.2	4
Rotating speed of motor(r/min)		940
Vacuum degree(Kpa)		60-80
Pumping volume(m³/min,㎡)		0.5-2
Blowing pressure(continuous blow)(Kpa)		10-30
Volume of blowing(m³/min,㎡)		0.1-0.5
Filter the area of the dehydration zone(°)		176
Angle of unloading area (°)		21
Regeneration zone angle(°)		100
Dimension（mm）		189525062087	211027552500	261029052500	321029052500
Weight(kg)		3265	3932	4754	5494	6500

Introduction：
Vacuum Permanent Magnet Filter is vacuum permanent magnet filter which is feeding upwards, filtering outside and cylinder type. It is mainly suitable for dehydration of the relatively coarse-particles magnetic materials.

Working Structure:

1.Strontium ferrite permanent magnetic system inside of the cylinder makes the magnetic particles be adsorbed rapidly onto the fabric surface. 2.The upper feeding makes the stratification effect of the concentrate filter cake according to the granularity more obvious.
3.Good permeability of the filter cake. 4.Magnetic particles in the slurry distribute on the surface of the cylinder in radial pattern because of the magnetic attraction. And the change of polarity magnetic system makes a magnetic stirring effect.

Features:
1.The susceptibility of solid particles in the slurry is no less than 3000 × 10-6cm3/g.
2.The particle size is 0.15-0.8mm.
3.Feeding concentration ≥ 60%.

Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:
As a professional manufacturer and designer of Vacuum Permanent Magnet Filter for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
