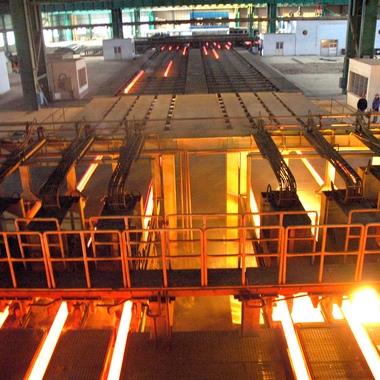

Product Name: CCM Steel Smelting Equipment Country of origin: China Condition: New CCM is mainly composed of ladle, tundish, mold (primary cooling), mold oscillating unit, secondary cooling and casting billet guide device, withdrawal and straightening unit, cutting unit, billet discharge unit...
Product Name: CCM Steel Smelting Equipment
Country of origin: China
Condition: New
CCM is mainly composed of ladle, tundish, mold (primary cooling), mold oscillating unit, secondary cooling and casting billet guide device, withdrawal and straightening unit, cutting unit, billet discharge unit (conveying roller), etc.
Qualified molten steel from steel refining furnace will be poured into steel ladle, then it will be delivered to the position above the CCM after external refining processing, and molten steel will be poured into the tundish from ladle bottom outlet. Tundish nozzle shall be adjusted to match with the lower mold in advance.
After opening the tundish stopper or sliding nozzle (or sizing nozzle), molten steel will flow into forced water-cooled copper mold. The mold has no bottom, so the drop bottom is required before filling with molten steel, meanwhile the drop bottom play a role in drawing out the casting billet and it is called dummy bar.
The molten steel inside the mold will be quickly cooled into crystals, meanwhile molten steel front will be solidified together with the head of dummy bar at the bottom of mold.
The rear end of dummy bar is clamped in the withdrawal roller of billet withdrawing machine, and billet withdrawing machine and mold oscillating unit will be started simultaneously when molten steel inside the mold reach to required height and solidified shell, at the mold lower outlet, reach to a certain thickness.
Withdrawal and straightening machine will pull out the dummy bar (with dummy bar) from the mold at a certain speed. To prevent the solidified shell from cracking breakout and reduce the withdrawal resistance of the mold, mold inner wall lubrication and up-down reciprocating movement are required.
After pulling out from the mold, the casting billet shall be cooled by spaying water, and this is called secondary cooling, meanwhile casting billet liquid-core will be gradually solidified by the secondary cooling.
The casting billet is continuously pulled out and molten steel is continuously poured into the mold, forming into the continuous casting process.
After passing through the billet withdrawing machine and straightening machine (straightening is not required for vertical type and horizontal type continuous casting), the casting billet will be removed from dummy bar.
The completely solidified straight billet will be cut into required size by cutting equipment, and transported to subsequent process by conveying roller.
The equipment used for continuous casting steel production is actually the complete set of mechanical equipment in the continuous casting production line.
In the continuous casting production, one complete set of continuous casting equipment that share with one ladle and capable of one strand or multiple strand casting billet production is called one set of CCM.
One set CCM can be of multiple units or single unit, the unit at here means the independent driving system and work system in one set of CCM.
For each set of CCM, the total quantity of the casting billet that is casted at the same time is called CCM strand quantity.
Curved mold technology, and mold hydraulic oscillation technology
Liquid level automatic detection and breakout prediction technology
Electromagnetic stirring technology, and mold automatic width control technology
Secondary cooling zone vaporization cooling technology, segment multipoint straightening and soft reduction technology, etc.
More Details：
As a professional manufacturer and designer of CCM Steel Smelting Equipment, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
