Name: Tailings Recycling Machine Country: China Usage: Applicable to metallurgy, mining, nonferrous metals, etc. C lassification : Separator Accessories Parameters: Introduction： Tailings Recycling Machine is very suitable for the efficient recovery and utilization of the magnetic materials from...
Name: Tailings Recycling Machine
Country: China
Usage: Applicable to metallurgy, mining, nonferrous metals, etc.
Classification: Separator Accessories
Parameters:
Model | Specification (mm) | Speed of ore discharge(r/min) | Power(kw) | Rotating speed(r/min) | Reducer | Remark |
WHL-12 | 1200*1200 | 23 | 4.0 | 6 | ZQ350 | |
WHL-10 | 1200*1000 | 23 | 4.0 | 6 | ZQ350 | |
WHL-10 | 1000*1000 | 23 | 3.0 | 6 | ZQ250 | |
WHL-8 | 1000*800 | 23 | 3.0 | 6 | ZQ250 | |
WHL-6 | 1000*600 | 23 | 2.2 | 6 | ZQ250 | |
WHL-4 | 1000*400 | 23 | 2.2 | 6 | ZQ250 | |
WHL-8 | 1000*800 | 23 | 3.0 | 6-10 | ZQ250 | |
WHL-6 | 1000*600 | 23 | 2.2 | 6-10 | ZQ250 | |
WHL-4 | 1000*400 | 23 | 2.2 | 6-10 | ZQ250 |
Introduction：

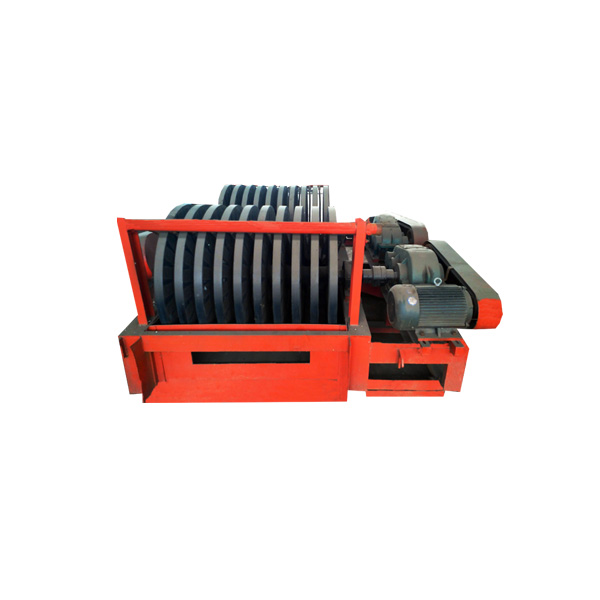

Tailings Recycling Machine is very suitable for the efficient recovery and utilization of the magnetic materials from waste slurries. Its magnetic system is made up of a group of bare-mounted magnets, which are arranged according to a certain gap. And it has a direct effect on the magnetic materials. Under strong magnetic field intensity and a large gradient effect, the recovery rate can be as high as 85%-95%. In particular, with the V-shaped scraper and their self-gravity, the magnetic materials can be discharged without water or less water.
Application:
This machine is widely used in metallurgy, mining, nonferrous metals, gold, building materials, electricity, coal preparation plants, iron and steel plants (steel slag), sintering plants and etc.
Features:
1. Stable machine body, and reasonable structure
2. Easy to operate, convenient to maintain, lower power consumption, and long service life.
3. According to the delivery capacity of user's tailing, the recycling machine can be divided into 4 unions, 6 unions, 8 unions, 9 unions, 12 unions, etc.
4. There are many diameter options of the recovery disk for users to choose, including 800mm, 1000mm, 1200mm, 1500mm and so on.
Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
More:
As a professional manufacturer and designer of Tailings Recycling Machine for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
