Permanent Magnetic Dewatering Tank

Name: Permanent Magnetic Dewatering Tank Country: China Usage: Applicable to select fine grain magnetite ore and concentrate the magnetic product before collation C lassification : Separator Accessories Parameters: Introduction： Permanent Magnetic Dewatering Tank separates magnetic ore grains...

Send Inquiry

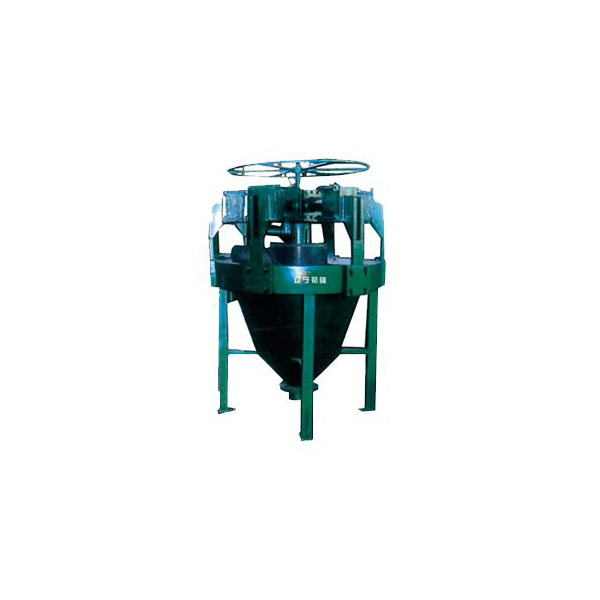

Name: Permanent Magnetic Dewatering Tank

Country: China

Usage: Applicable to select fine grain magnetite ore and concentrate the magnetic product before collation

Classification: Separator Accessories

Parameters:

Model	CT12	CT16	CT20	CT25	CT30
Specification	Φ1200	Φ1600	Φ2000	Φ2500	Φ3000
Taper		48°	48°	56°	56°
Precipitation area	1.5㎡	2㎡	3㎡	4.8㎡	7㎡
Magnetic induction	≥30mt	≥30mt	≥30mt	≥30mt	≥30mt
Overflow particle size	1.5-0	1.5-0	1.5-0	1.5-0	1.5-0
Processing capacity	25-40	30-45	35-50	40-55	45-60
Dimension	Φ1200*1500	Φ1600*1800	Φ2000*2000	Φ2500*2300	Φ3000*3000

Introduction：

Permanent Magnetic Dewatering Tank separates magnetic ore grains from non-magnetic ore

grains(slime)by means of gravity, magnetic force, and raising flow, and is mainly applicable

to mineral concentration. With computer optimized design, it works under efficient and

reliable properties, reasonable construction and easy operation, and is an ideal option for

mineral-slime separation, it can separator less 0.5mm size for materials.

Application:

It is used for selecting fine grain magnetite ore and concentrate the magnetic product before collation.

Features:
1.Improve the recovery rate.

2.Large handling capacity.

3.High efficiency.

Our Services:

Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant

Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:

As a professional manufacturer and designer of Permanent Magnetic Dewatering Tank for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
