Dry Permanent Rotary Magnetic Drum

Name: Dry Permanent Rotary Magnetic Drum Country: China Usage: Applicable to the election in cement, magnetic separation, etc. C lassification : Separator Accessories Parameters: Introduction： Dry Permanent Rotary Magnetic Drum is a stationary permanent magnet, comprised of standard Ferrite and...

Send Inquiry

Name: Dry Permanent Rotary Magnetic Drum
Country: China
Usage: Applicable to the election in cement, magnetic separation, etc.
Classification: Separator Accessories

Parameters:

Magnetic roll model RCY-GB cm	Roll length L	Roll diameter D	Spindle head ΦXK	key		Bearing seat				Rolling bearing model	Overall length L	Roll surface magnetic induction(mt)	Switch cabinet		Weight (kg)
Magnetic roll model RCY-GB cm	Roll length L	Roll diameter D	Spindle head ΦXK	b	h	A	E	H	d	Rolling bearing model	Overall length L	Roll surface magnetic induction(mt)	Smooth roll	Glue roll	Weight (kg)
RCY-G50	600	500	55*115	16	60	850	240	80	27	1312	1097	General P=150-250 Special T=300-400	1.63	2.5	380
RCY-G65-1	750	500	70*135	20	76	1000	350	120	27	1316	1280		2.12	3.26	580
RCY-G65-2	750	630	70*135	20	76	1000	350	120	27	1316	1280		2.96	4.54	800
RCY-G80-1	950	500	70*135	20	76	1300	350	120	27	1316	1580		2.62	4.01	765
RCY-G80-2		630	90*175	24	97		380	140		3520	1661		3.67	5.61	1090
RCY-G80-3		800	90*175	24	97		380	140		3520	1661		5.59	8.55	1480
RCY-G100-1		630	90*175	24	97	1500	380	140	27	3520	1861		4.57	7.01	1285
RCY-G100-2		800	110*215	32	119		440	160	34	3524	1945		6.9	10.68	1865
RCY-G100-3		1000	130*255	36	140		480	180	34	3528	2020			17.75	2795
RCY-G120-1	1400	630	110*215	32	119	1750	440	160	34	3524	2195		5.49	8.4	1610
RCY-G120-2		800	110*215	32	119		440	160		3524	2195		8.37	12.81	2465
RCY-G120-3		1000	130*255	36	140		480	180		3528	2270			21.3	3560
RCY-G120-4		1250	150*275	40	161		540	200		3532	2305			30	5230
RCY-G140-1	1600	800	110*215	32	119	2000	440	160	34	3524	2445		9.76	14.92	2865
RCY-G140-2		1000	150*275	40	161		540	200		3532	2555			24.925	4405
RCY-G140-3		1250	150*275		161		540	200		3532	2555			35	6005
RCY-G140-4		1400	170*335		181		590	220	40	3536	2635			47	7535

Introduction：

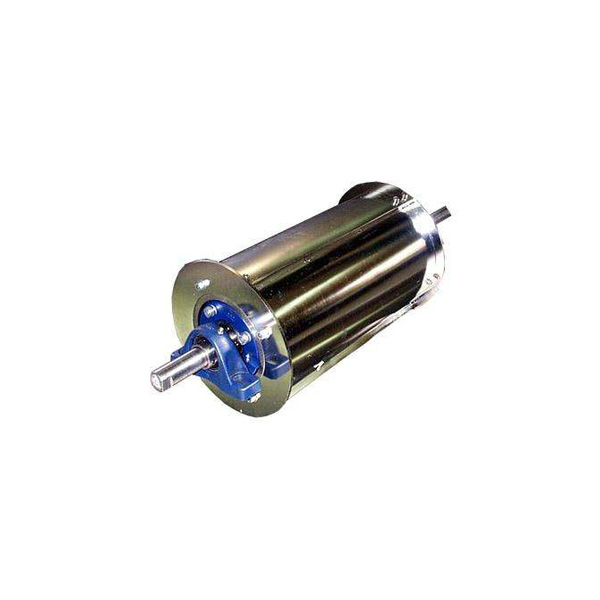

Dry Permanent Rotary Magnetic Drum is a stationary permanent magnet, comprised of standard Ferrite and Rare Earth NdFeB Magnets enclosed in a non-magnetic stainless-steel drum shell.

It is widely used as head pulleys in belt conveyors for continuous automatic removal of damaging tramp iron from a variety of materials.
Permanent dry magnetic separator drum work with conveyor systems, Widely used in purification and concentration of Ores, Chemicals and Granular Products.

Application:
Dry Permanent Rotary Magnetic Drum is widely used for iron election in cement, magnetic separation, mining, steel, chemicals, refractories, waste disposal and other industries.

Features:
1.RCT permanent magnetic drum, magnetic pulley.
2.Easy to install and convenient to use.
3.Excellent magnetic field intensity.

Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:
As a professional manufacturer and designer of Dry Permanent Rotary Magnetic Drum for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
