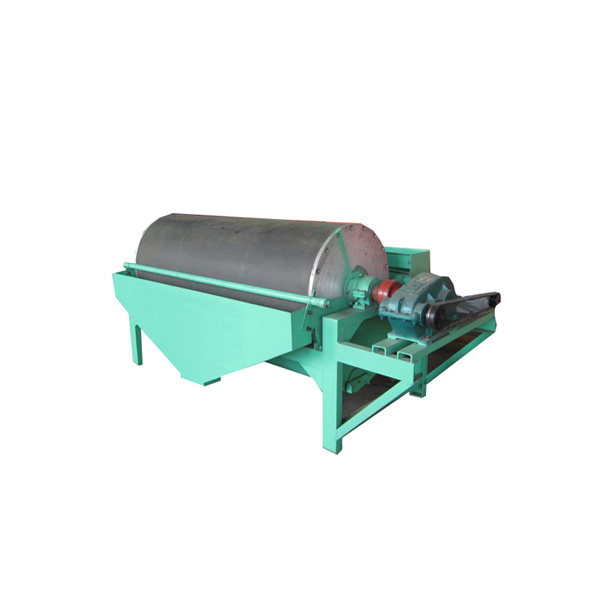

Drum Permanent Magnetic Separator

Name: Drum Permanent Magnetic Separator Country: China Usage: Applicable to mineral processing, coal washing and chemical industries C lassification : Permanent Magnet Separator Parameters: Introduction： Drum Permanent Magnetic Separator is high-efficiency ore concentration machine newly...

Send Inquiry

Name: Drum Permanent Magnetic Separator

Country: China

Usage: Applicable to mineral processing, coal washing and chemical industries

Classification: Permanent Magnet Separator

Parameters:

Model	Dimension(mm)	Rotating speed(r/min)	Average strength of cylinder surface(mt)	Motor Power(kw)	Reducer	Processing capability(t/h)
CTB-609	600*900	40	＞120	1.5	ZQ250	8-15
CTB-612	600*1200	40	＞120	2.2	ZQ250	15-25
CTB-618	600*1800	40	＞120	3	ZQ250	15-30
CTB-718	750*1800	35	＞120	3	ZQ250	20-45
CTB-918	900*1800	30	150-160	4	ZQ350	25-55
CTB-1018	1050*1800	22	150-160	5.5	ZQ400	40-75
CTB-1021	1050*2100	22	150-160	7.5	ZQ400	45-85
CTB-1024	1050*2400	22	150-160	7.5	ZQ500	52-100
CTB-1030	1050*3000	22	150-160	11	ZQ500	60-120

Introduction：

Drum Permanent Magnetic Separator is high-efficiency ore concentration machine newly designed by our company which is widely used to remove, purify or separate materials, allowing them to be of higher values. Rely on our elaborative efforts, dry magnetic separator becomes great for the dry and arid regions to save water resources and reduce production cost, opening a new way for magnetite mining and utilization.

Drum Permanent Magnetic Separator for fine ore also can be driven by diesel engine, if it is used in region which is short of electricity Apart from existing fixed types, this kind of dry magnetic separator with different magnetic induction intensity and application for different magnetic materials can also be developed according to the specific requirements of customers.

Application:

Drum Permanent Magnetic Separator is widely used in mineral processing, coal washing and chemical industries for strong magnetic minerals that wet classification size ranges from 0 to 6 mm, and divides the minerals into magnetic and non-magnetic materials. It often processes strongly magnetic materials such as magnetite, magnetic pyrite etc..

Features:
1.For pre-separation of low-grade ores, to pre-concentrate ores, raise ore grade and reduce production cost.

2.For re-separation of tails, to recover relatively rich iron ore tailing.
3.For magnetic purification of dry fines of pyrite cinder.

4.To effectively remove iron from non-magnetic materials with lower cost.
5.For purification of concentrated fines, to remove lean associated materials and gangue from concentrated iron fines, lead to the grade improvement of fines and increase the technically-added value of products.

Our Services:

Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant

Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:

As a professional manufacturer and designer of Drum Permanent Magnetic Separator for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
