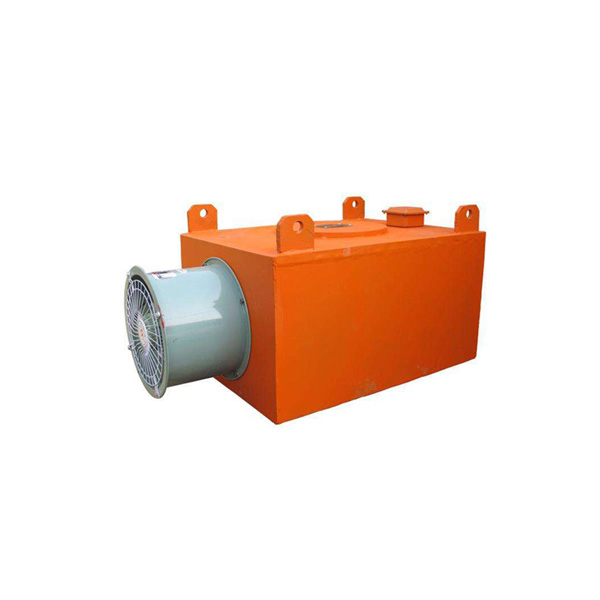

Suspended Air-cooled Electromagnetic Separator

Product Details: Name: Suspended Air-cooled Electromagnetic Separator Country: China Usage: Applicable to open air and a variety of light dust environment Classification: Electromagnetic Separator Parameters: Introduction： Suspended Air-cooled Electromagnetic Separator is a suspended air cooled...

Send Inquiry

Name: Suspended Air-cooled Electromagnetic Separator
Country: China
Usage: Applicable to open air and a variety of light dust environment
Classification: Electromagnetic Separator

Parameters:

Model	Cooling method	Applicable bandwidth （MM）	Rated height of suspension(MM)	Excitation power(KW)	Magnetic induction of Rated height(MT)	Fan power(KW)	Main dimensions						Weight (KG)
Model	Cooling method	Applicable bandwidth （MM）	Rated height of suspension(MM)	Excitation power(KW)	Magnetic induction of Rated height(MT)	Fan power(KW)	A	B	C	D	E	F
RCDA-5	Air-cooled	500	150	≤2	≥70	0.37	1130	800	451	640	653	363	470
RCDA-6		650	200	≤3	≥70	0.37	1273	850	475	743	788	387	640
RCDA-8		800	250	≤4.5	≥70	0.55	1527	1050	578	920	955	495	900
RCDA-10		1000	300	≤6	≥70	0.55	1727	1150	651	1013	1074	568	1250
RCDA-12		1200	350	≤8.5	≥70	1.1	2052	1500	738	1351	1434	665	2358
RCDA-14		1400	400	≤9.5	≥70	1.1	2243	1700	791	1550	1643	718	3075
RCDA-16		1600	450	≤14	≥70	1.5	2505	1900	810	1750	1842	742	4670
RCDA-18		1800	500	≤15.5	≥70	1.1*2	2770	2100	900	1900	2000	850	7600
RCDA-20		2000	550	≤18	≥70	1.5*2	2880	2300	950	2100	2100	900	9500

Introduction：
Suspended Air-cooled Electromagnetic Separator is a suspended air cooled electromagnetic iron separator. The internal excitation coils use air-conditioning fans or axial flow fan to cool the separator. when the iron separator is in a good working environment, air-conditioning fans sparse the heat. When the magnetic separator is in a harsh working environment (for example, plenty of dust, coal dust, smoke), axial flow fans sparse the heat. This product has a reasonable structure, low failure rate and a wide usage range.

Application:
Suspended Air-cooled Electromagnetic Separator is applicable to open air and a variety of light dust environment. It is usually suspended over the conveyor belt to collect ferrous elements from non-magnetic materials before the crushing or milling process, and so as to protect the crushing and milling machines.

Features:
1.Compact structure and light weight
2.Easy to maintain for continuing reliable performance
3.Low operating temperatures
4.The coil is treated with special treatment, oxidation resistance, corrosion resistance and good insulation

The heat dissipation area is big, the temperature rise is stable, the cooling effect is good

Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:
As a professional manufacturer and designer of Suspended Air-cooled Electromagnetic Separator for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
