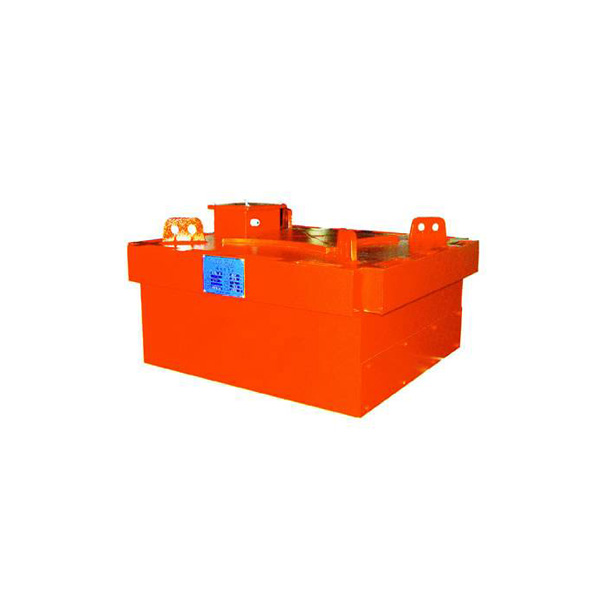

Rectangular Electromagnetic Separator

Product Details: Name: Rectangular Electromagnetic Separator Country: China Usage: Applicable to remove the magnetic tramp irons from the corns, etc. C lassification : Electromagnetic Separator Parameters: Introduction： Rectangular Electromagnetic Separator is designed for long term operating...

Send Inquiry

Name: Rectangular Electromagnetic Separator
Country: China
Usage: Applicable to remove the magnetic tramp irons from the corns, etc.
Classification: Electromagnetic Separator

Parameters:

Model	Cooling method	Applicable bandwidth （MM）	Rated height of suspension(MM)	Excitation power(KW)	Magnetic induction of Rated height(MT)	Main dimensions						Weight (KG)
Model	Cooling method	Applicable bandwidth （MM）	Rated height of suspension(MM)	Excitation power(KW)	Magnetic induction of Rated height(MT)	A	B	C	D	E	F	Weight (KG)
RCDB-5	Self-cooled	500	150	≤2	≥70	891	908	470	550	560	400	550
RCDB-6		650	200	≤3	≥70	1034	958	560	600	600	480	750
RCDB-8		800	250	≤4	≥70	1066	1058	665	600	600	580	1200
RCDB-10		1000	300	≤7.5	≥70	1216	1208	740	750	750	670	1900
RCDB-12		1200	350	≤9.5	≥70	1456	1408	840	900	900	770	2700
RCDB-14		1400	400	≤12	≥70	1656	1608	935	1000	1000	867	3800
RCDB-16		1600	450	≤14.5	≥70	1856	1808	1015	1200	1200	947	5000
RCDB-18		1800	500	≤18	≥70	2151	2108	1070	1400	1400	1020	5900
RCDB-20		2000	550	≤31.5	≥70	2263	2208	2308	1700	1700	1700	8500

Introduction：
Rectangular Electromagnetic Separator is designed for long term operating shift which is provided with the adjustable hooks in its suspending system to adjust the height of erection and installation conveniently.

Application:
Rectangular Electromagnetic Separator can produce almost the same magnetic field in its width direction(in size B). Thus, it is suitable for removing the magnetic tramp irons from the corns, wooden shacings, bagasse, scissoring raw materials, chemecal raw materials etc.

Features:
1.Large, stable magnetic field.
2.Flexible installation.
3.Long term working.
4.Suspending with hooks (height is adjustable).
5.Equal magnetic field in the direction of width.

Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:
As a professional manufacturer and designer of Rectangular Electromagnetic Separator for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
