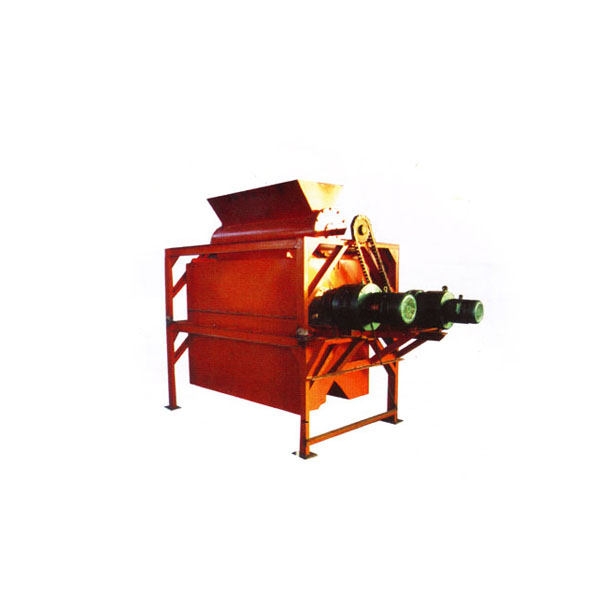

Dry Drum Permanent Magnetic Separator

Name: Dry Drum Permanent Magnetic Separator Country: China Usage: Applicable to attract dry powder from the material continuously and automatically C lassification : Dry Magnetic Separator Parameters: Introduction： Dry drum permanent magnetic separator is a magnetic separation equipment used to...

Send Inquiry

Name: Dry Drum Permanent Magnetic Separator
Country: China
Usage: Applicable to attract dry powder from the material continuously and automatically
Classification: Dry Magnetic Separator

Parameters:

Model		CTG-712	CTG-	CTG-	CTG-	CTG-	CTG-	CTG-
Drum	Diameter(mm)	Φ750			Φ900		Φ1000
	Length(mm)	1200	1500	1800	1500	1800	1800	2100
Rotating speed(r/mm)		40-90	40-90	40-90	30-90	30-90	20-90	20-90
Magnetic induction of the drum’s surface(mt)		120-800mt(1200-8000Gs)
Shell form		Two ore discharge ports, namely tailings mouth and concentrate mouth(For the high field strength, it can also be made into three discharge ports, according to your requirements)
Sorting granularity(mm)		0.5-5			0.074-5
Allow humidity of being selected(%)		≤3
Processing capacity(t/h)		20-65	20-80	20-100	30-100	30-120	30-150	30-180
Dimension(mm)		（1300+length of drum）13451950			（1340+length of drum）14832060		（1380+length of drum）15752200
Weight(t)		2.7	2.85	3.1	3.4	3.7	3.9	4.2
Model of Motor		YCTJ200-3-11			YCTJ200-4-11		YCTJ200-5.5-11
		YCTJ160-2.2-17			YCTJ160-2.2-17		YCTJ160-3-17
Pole distance(mm)		30,50,90，it can be customized.

Introduction：
Dry drum permanent magnetic separator is a magnetic separation equipment used to attract dry powder from the material continuously and automatically. The unique design for magnetic circuit and the magnetic source is made up from the NdFeB with high performance. Featuring with powerful magnetic force and high efficiency for tramp iron-elimination, it can be widely arranged in the lines such as grinding, fire-proof material, foodstuff, feed, building material, ceramics, raw material for glass, and chemical industry and so on. Feeding capacity can be adjusted to meet the different granularity requirement. It is characteristic with exempt-maintenance, energy saving, cost-lower, safety and reliability.

Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.

Features:
1.Improve the grade by 4-6%
2.Improve the recovery rate by 8%
3.Increase capaity by 12%

Short magnetic circuit
Little magnetic flux leakage
High magnetic intensity
Low energy consumption
Fine beneficiating results
Simple structure and easy to maintain

Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure the product runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

More:
As a professional manufacturer and designer of Dry Drum Permanent Magnetic Separator for more than 50 years, we can offer various kinds of products with advanced mechanical equipments and experienced technical workers that we can provide this product on top quality and best price. The product will be shipping from China factory directly to your offered address. We are confident to be the best supplier in China.
