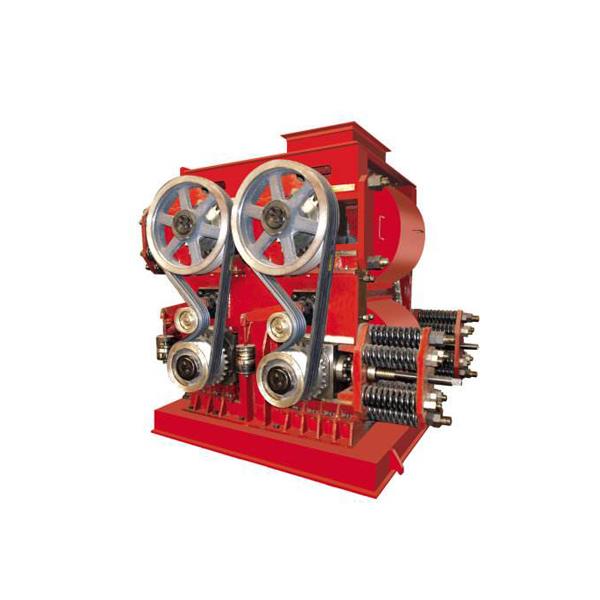

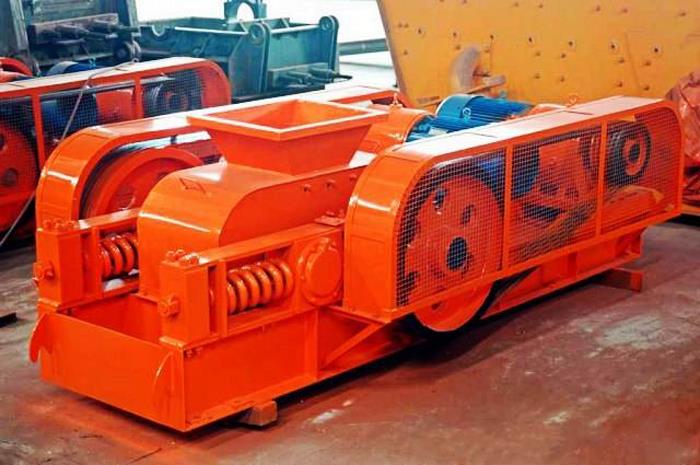

The smooth double roll crusher is widely used for secondary and fine crushing in the industry of mining, building materials, chemical industry, metallurgy and so on. It can crush materials in middle hardness such as rocks, ore, coke, lump coal, slag, mineral slag, cement clinker, fireproof...
The smooth double roll crusher is widely used for secondary and fine crushing in the industry of mining, building materials, chemical industry, metallurgy and so on. It can crush materials in middle hardness such as rocks, ore, coke, lump coal, slag, mineral slag, cement clinker, fireproof materials, and so on.
Working principle of smooth double roll crusher:
The smooth double roll crusher consists of roll wheel, roll bearing, pressing device, adjusting device and driving device etc. Discharging size adjustment: between two roller equipped with cuneate or gasket adjusting device, top of the wedge device capped with adjustment bolts.
When the adjustment bolts pull upward wedge which will bear against the fixed wheel to make it deviate from the movable roller wheel, then the gap between wheels become large, discharging size become bigger, otherwise the opposite, gasket device is through the quantity or thickness to adjust the materials size.
When roll crusher adding gaskets the gap between wheels become large, when reducing gaskets the gap between wheels become small, so the discharging size becomes small. Driving structure is two motors through triangle belt drive to grooved pulley which drag roller rotating according to relative direction. In crushing stage, material is broken by roll wheel; final product is discharged from chassis. For safety, transmission part should be installed safety guard according to actual situation.
Features of smooth double roll crushers:
1. Compared with other types of crushers, this series of crusher has many advantages such as big crushing ratio, no requirement for the water content of the materials to be crushed, low noise, low vibration, low energy consumption, small coverage size and simple and convenient maintenance.
2. It is equipped with hydraulic automatic yielding device which can effectively prevent the iron from damaging the roll and prevent wood and soft materials from damaging the normal work of the roll.
3. It is equipped with intelligent clearing device which can automatically remove the materials sticking on the chamber wall using the working intervals.
4. This machine adopts mechanical, equipment and hydraulic protective device and interlocking device, thus effectively protecting the electromotor, crusher and the whole system.
5. This product becomes the first choice of the heat-engine plant to replace import crushing equipment due to its advantages of high efficiency, energy conservancy and environment protection. It is suitable for crushing crisp materials with medium and low hardness such as soft coal, blind coal, lignite and gangue and also suitable for processing sinter, coke, slag, shale and limestone.
Hot sale high quality smooth double roll crushers
Top quality and excellent service
Stable performance
Easy operation
Our Services:
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
